SP-1P

Specular Microscope

Automated Corneal Endothelium Imaging

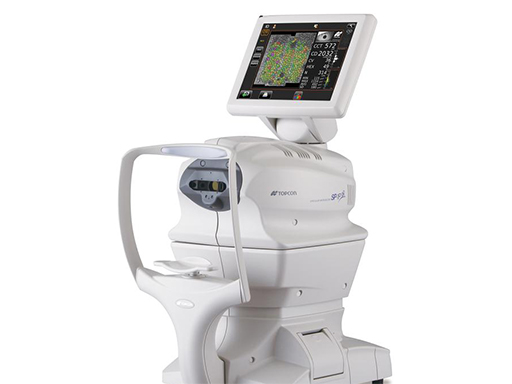

The Topcon Specular Microscope model SP-1P introduces a fully automatic capture procedure together with a modern, ergonomic design that simplifies its use and increases its efficiency. A large 10.4 inch rotatable touch panel monitor eliminates the need for a joystick, and can be turned to various angles, for better interaction with the patient. The space saving features combined with its ease of use makes the SP-1P the instrument for a new generation in eye care.

Key Features

  • WIDE ANGLE “PANORAMA” PHOTOGRAPHY MODE – Substantial size increase of the analyzed area.
  • TWO SPECIFIC PHOTOGRAPHY MODES – Sequence Course & Free Style Course.
  • QUICK AUTOMATIC MEASUREMENT – Intuitive operation with instant acquisition of the analysis result.
  • EASY-TO-READ AND COMPREHENSIVE ANALYSIS – Frequently referred values are shown on top; pleomorphic / polymegethic histogram can be shown with color.
  • COMPACT AND STYLISH DESIGN – 10.4” rotatable touch panel monitor for versatile positioning.

Ready to learn more?

Contact us today

SP-1P SPECIFICATIONS
Corneal Endothelium Photography
Photography Magnification

254x (on the control panel)

Photography Range

0.25 x 0.55 mm

Resolving Power

125 Ip/mm or more

CORNEAL THICKNESS MEASUREMENT
Measurement Range

0.400 – 0.750 mm

OTHER SPECIFICATIONS
Dimensions

286-468mm(W) x 445-592mm(D) x 486-681mm(H)

Weight

17 kg

Power Supply Source Voltage

100-240V AC, 50-60Hz

Power Input

70-120VA
