Automatic Lens Analyzer

Fully Automated Lensmeter with a Full Range Spectrometer

The SOLOS lensmeter and spectrometer has the ability to automatically detect, measure, and mark single vision, progressive, and other multifocal lenses glazed in a spectacle frame or as uncut lenses. With a single touch, SOLOS automatically positions each lens, detects the lens type and performs comprehensive measurements.

Learn More

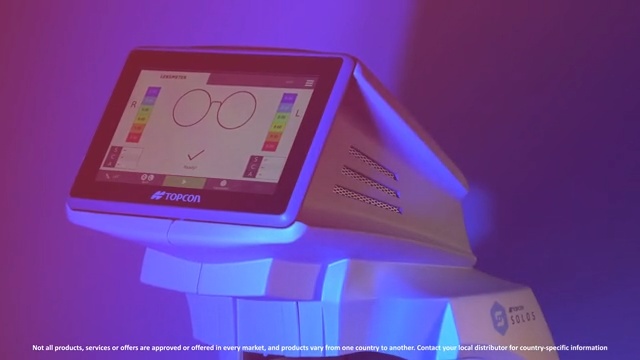

Watch this SOLOS overview

Product Features

SOLOS Features

Automated, One-Touch
Operation

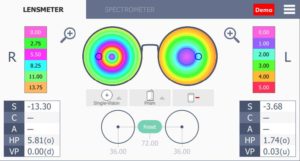

Lens Mapping with
Distortion Map

Wireless Data
Transfer

Automatic
Lens Marking

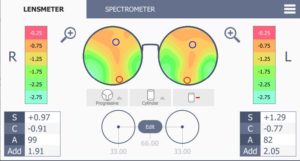

Automatic Lens
Type Detection

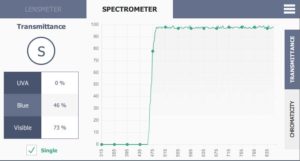

UV-A, Blue Light and
Visible Light Transmittance
Measurements

Extended Measurement
Range (Up to +/- 20D)

Detailed
PDF Reports

SOLOS Training Videos

Advanced, accurate lens analysis with the touch of a button

Ready to learn more?

Contact us today

Product Specifications

SOLOS SPECIFICATIONS

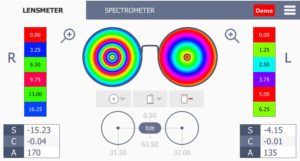

	Measurement Range
Sphere Power	-20D to +20D (step 0.01, 0.125, 0.25D)
Cylinder Power	-10D to +10D (step 0.01, 0.125, 0.25D)
Cylinder Axis	0 to 180° (step 1°)
Addition Power	-4D to +4D (step 0.01, 0.125, 0.25D)
Prism Power	-10D to +10D (step 0.01)
PD Measurement	Monocular/Binocular
Cylinder	– / +
	Other

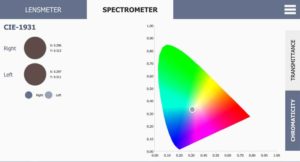

Spectrometer	315nm – 800nm
Automatic Marking	Optical Center and Axis (framed glasses or uncut lenses)
	Other
Dimensions	(W)245mm x (H)450mm x (D)354mm
Weight	Net Weight: 8kg Cables and user manual: 2kg Packaging: 3.2kg
Printer	Internal (Thermal)
Screen	7 inch Touch Screen LCD/16M colors
Light Source	Green e-line source
Working Conditions	10°C to 40°C
Power Supply	AC 100 – 240V — 50/60Hz
Classification	Class I Medical Device – EU Regulation 2017/745
Standards	ISO 8598
Data Connection Output	LAN, Wi-Fi
