Corneal Analyzer

Fast, Comprehensive Analysis of the Cornea

The CA-800 Corneal Analyzer is an easy-to-use corneal topographer with tools for complete evaluation of the anterior corneal surface and eyelids. The CA-800 offers corneal topography, dynamic pupillometry, meibomian gland imaging, tear meniscus analysis, contact lens fitting software and fluorometry.

Learn More

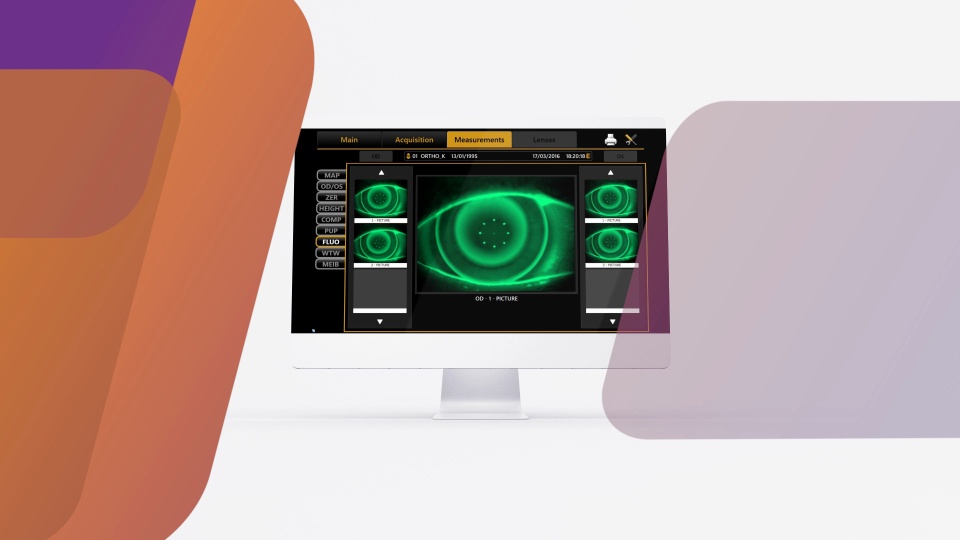

Watch this quick CA-800 demo

Product Features

Aladdin HW 3.0 Features

Topography
Corneal Wavefront
(Zernike) Analysis

Tear Film Breakup
Tear Meniscus Height/
Blink Analysis

Dynamic, Photopic, Mesopic
& Scotopic Pupillometry

White-to-White
Measurement

Contact Lens
Fitting Simulation

Meibomian Gland
Analysis

Easy-to-Use Corneal Topography and Dry Eye Workstation.

Key Features

COMPREHENSIVE – Meibomian gland imaging, tear meniscus analysis, fluorescein imaging, contact lens fitting software, pupillometry, white-to-white measurements and Zernike analysis.
ACCURATE – Proven Placido disk technology for accurate, high-resolution images of the corneal surface.
EASY-TO-USE – Automated operation with touchscreen controls and intuitive analysis software.
EFFICIENT – Fully integrated PC streamlines database management and image analysis.

Ready to learn more?

Contact us today

Downloads

Image Gallery and Videos

CA-800 – Comparison Map

View now >

MYAH – Corneal Aberration Summary

View now >

MYAH – Contact Lens Fitting

View now >

Product Specifications

CA-800 SPECIFICATIONS
Keratoscope Cone	24 rings equally distributed on a 45D sphere
Analyzed Points	Over 100,000
Measured Points	6,200
Corneal Coverage	Up to 9.8mm on a sphere of radius 8.00mm (42.2 diopters with n=1.3375)
Diopter Power Range	From 1D to 120D
Resolution	+/- 0.01D, 1 micron
Accuracy / Precision Axial Radius	+/- 0.03mm altimetric data, +/- 2µm at 4mm
Capture System	Guided focus with auto-capture
Output Ports	2xUSB, LAN
Monitor	LCD 10.1 inch capacitive touch screen
Database	Internal
Pupillometry	Dynamic, Photopic, Mesopic, Scotopic
Fluorescein	Image, Video
Report	Corneal map, Comparison map, Contact lens, Height map, Zernike analysis, Pupillometry, Toric IOL, Screenshot, NIBUT, Meibomian gland analysis, TMH, Fluorescein
Working Environment	10°-40°C, Relative humidity 30-75% (no dewing), Atmospheric pressure 700-1060hPa
Power Source	AC 100-240V 50/60 Hz
Power Consumption	80 VA
Dimensions	320mm (W) x 490mm (H) x 470mm (L), 15 Kg
Connections	Wi-Fi Optional, LAN integrated / iMAP
Printing Options	USB printer, Network printer, PDF on network shared folder, PDF on USB
Operating System	Windows 10 Enterprise LTSC (Long Term Support Channel)
RAM	4GB
Hard Disk	At least 500GB SATA Hard drive (database storage) 32 GB Solid State Drive (operating system and application software)
