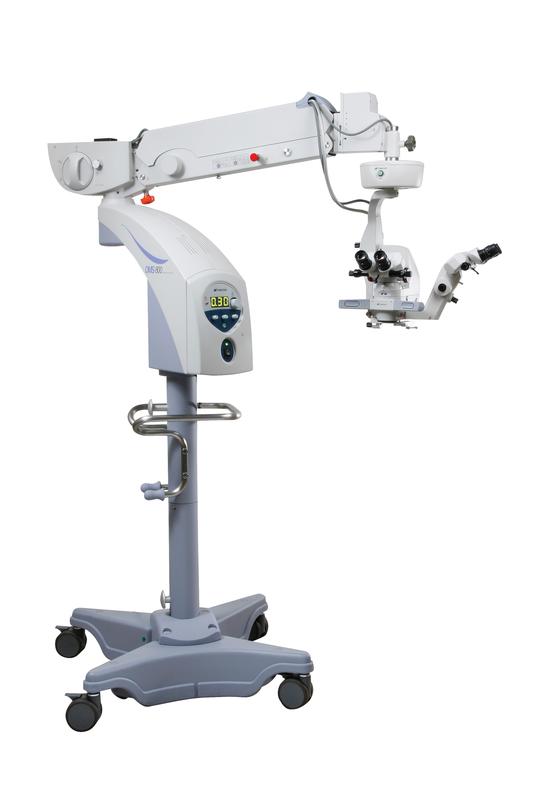

Ophthalmic Operation Microscope

Advanced Microscopes for Ophthalmic Procedures

The OMS-800 operation microscope series is the ideal choice for all types of ophthalmic operations including cataract and vitreous surgery. It provides excellent stereoscopic and color-corrected images, brilliant illumination, and superior operational efficiencies for today’s sophisticated operations.

Available in three models:

OMS-800 Standard – Incorporates outstanding performance features
OMS-800 Pro – Improve operational efficiencies
OMS-800 OFFIS – Open up the new possibilities of intravitreal surgery

Key Features

  • COMFORTABLE OPERATING POSITION – Ergonomically designed optical head with a built-in Beam Splitter allows the surgeon to maintain a comfortable posture throughout the surgery.
  • SPACE-SAVING DESIGN – Stable, compact base and long support arm of OMS-800 provides a comfortable working area for both the surgeon and assistant.
  • MULTI-FUNCTION FOOTSWITCH – Without any hand movement, the surgeon can alter the illumination intensity, zoom magnification, focus, illumination angle selection, and X-Y positioning.

Optional High-Definition Video System

The HD Video System for Microscopes and Medical Applications allows for live viewing of surgical procedures performed with any of the current Topcon Operation Microscopes. The optional 26″ Full HD Widescreen Color Monitor displays a bright and clear image of the surgeon’s view in real-time for teaching and educational purposes. The compact HD video camera mounts unobtrusively on either side of the microscope optical head via an optional TV relay lens and beam splitter.

Ready to learn more?

Contact us today


Floor Type

Microscope Type

Galileo Type

Magnification Change Type

Electric zoom continuous change

Eyepiece (Eyepiece magnification)


Objective Lens


Display Magnification (x)


Total Magnification


1st Arm Length (Distance between shafts)


1st Arm Rotation Range


2nd Arm Length (Distance between shafts)

OMS-800 OFFISS: 990mm
OMS-800 Pro: 990mm
OMS-800 Standard: 875mm

2nd Arm Rotation Range


2nd Arm Vertical Movement Range


2nd Arm Mounting Weight

OMS-800 OFFISS: 6kg-18kg
OMS-800 Pro: 9kg-21kg
OMS-800 Standard: 9kg-21kg

Power Supply

AC 100-120V/220-240V, 50-60Hz 280VA


Base (Base unit): 730mm(W) X 720mm(D)
Base (Base total height): 1,865mm


OMS-800 OFFISS: 250kg
OMS-800 Pro: 247kg
OMS-800 Standard: 244kg

Permitted Weight for Accessories

OMS-800 OFFISS: 4.8(4.4) kg
OMS-800 Pro: 6.8(6.4) kg
OMS-800 Standard: 7.3(6.9) kg
