OMS-90

Operation Microscope

Optimal Observation and Versatile Operation

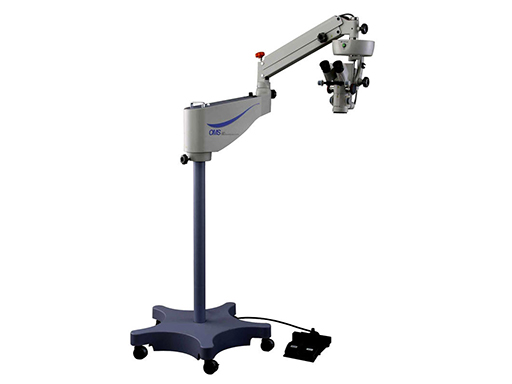

The OMS-90 Operation Microscope is the new standard in versatile microsurgery. It features a water-repellent coated objective lens, new coaxial illumination, a PD adjustment knob, and five-step magnification.

Key Features

  • COAXIAL ILLUMINATION – The new and innovative design that allows the surgeon to view a sharper image, with more clarity than ever before.
  • STAIN-PROOF COATED OBJECTIVE LENS – Stain-proof coating is applied to help retain a clear viewing area and focal length (F=200mm) provides a standardized comfortable working distance.
  • PARALLEL BINOCULAR TUBE – The parallel binocular tube provides a natural stereoscopic view.
  • PD ADJUSTMENT KNOB – The built-in PD adjustment feature offers easy alignment.
  • BUILT-IN YELLOW FILTER – The flip in/out yellow filter is built into the system to allow full protection against retina phototoxicity.
  • COMPACT BASE – Sturdy and compact 740mm (30”) base is designed for optimal use of limited operating room floor space.

Optional High-Definition Video System

The HD Video System for Microscopes and Medical Applications allows for live viewing of surgical procedures performed with any of the current Topcon Operation Microscopes. The optional 26″ Full HD Widescreen Color Monitor displays a bright and clear image of the surgeon’s view in real-time for teaching and educational purposes. The compact HD video camera mounts unobtrusively on either side of the microscope optical head via an optional TV relay lens and beam splitter.

OMS-90

Ready to learn more?

Contact us today

OMS-90 MAIN MICROSCOPE SPECIFICATIONS
Binocular Tube

Parallel 45° inclined binocular tube

Objective Lens

F=200mm

Eyepieces

12.5x

Magnification Change Type

Drum type with 5 changes

Total Magnification

3.4x, 5.3x, 8.5x, 13.6x, 21.2x

Field of View

ø 66.3, ø 42.3, ø 26.3, ø 17.1, ø 1 0.3mm

X-Y Translator (option)

Range: ±25mm

ARM (Counter-balanced) SPECIFICATIONS
Length

1st arm: 400mm; 2nd arm: 560mm

Rotational Angle

1st arm: 360°; 2nd arm: 300°

COLUMN BASE
Base Dimension

ø 740mm (30″)

POWER UNIT
Primary Voltage

AC100 – 120V or AC220 – 240V

Power Frequency

50/60Hz

Maximum Power Consumption

280VA

Weight

97kg
